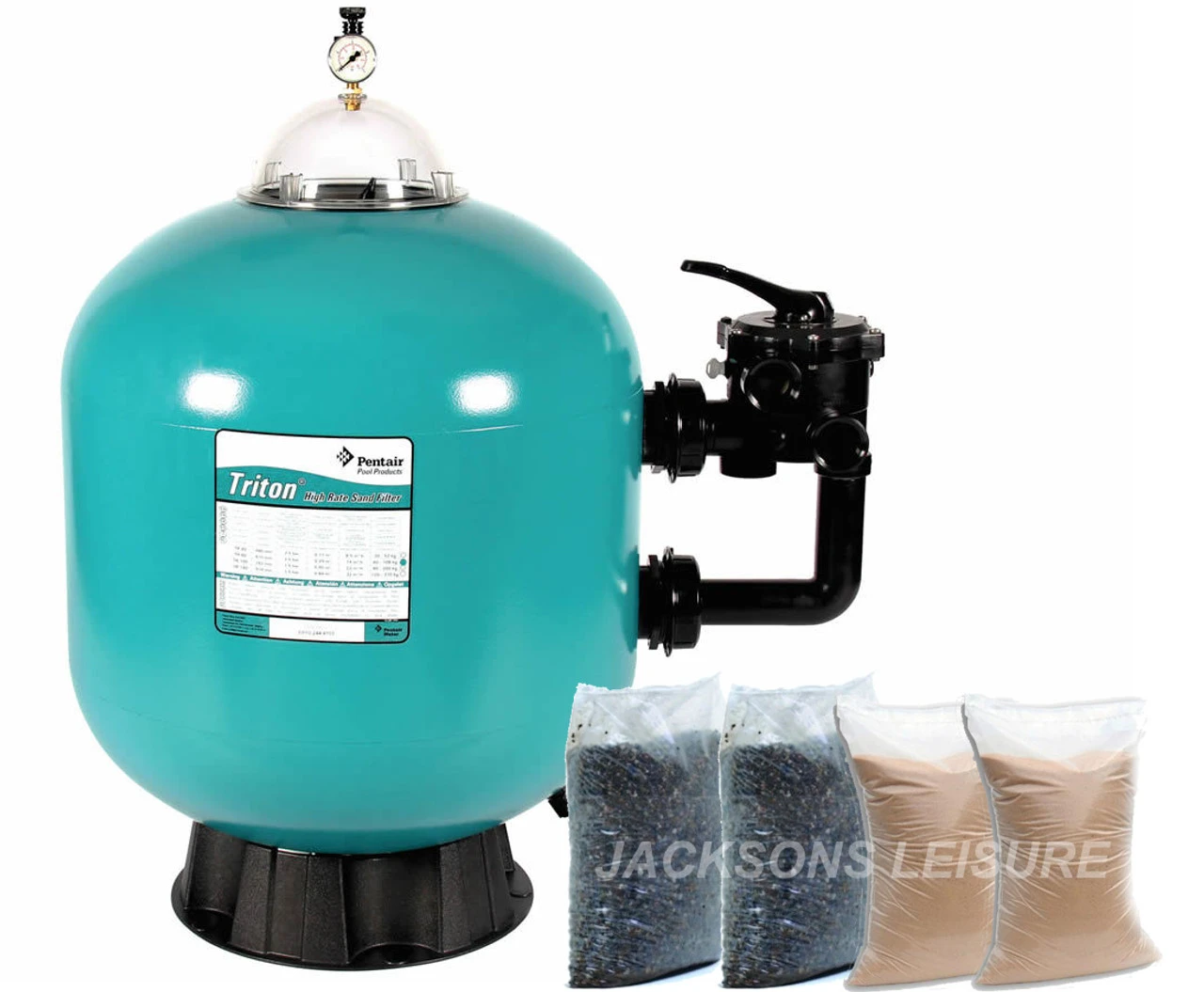

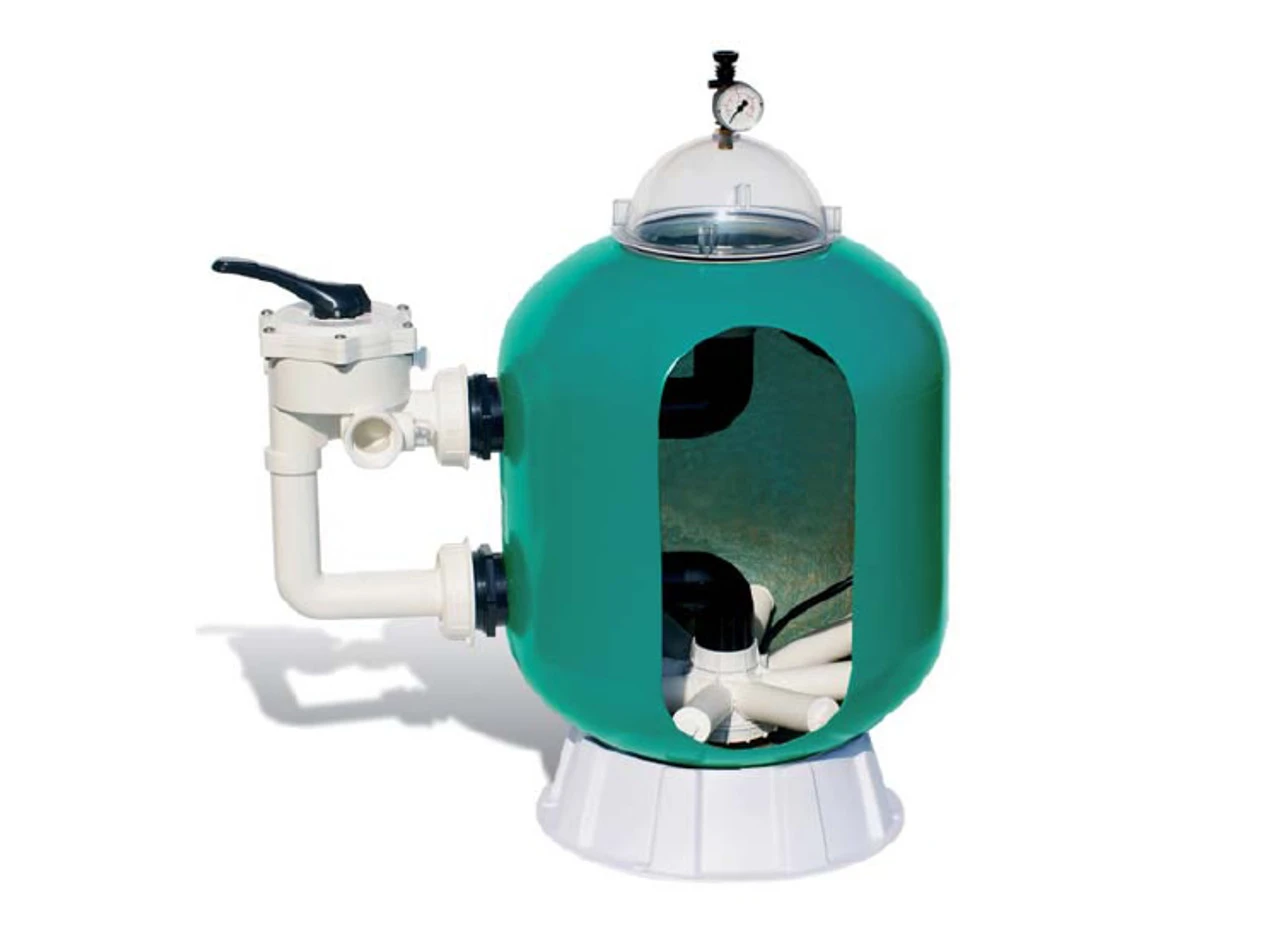

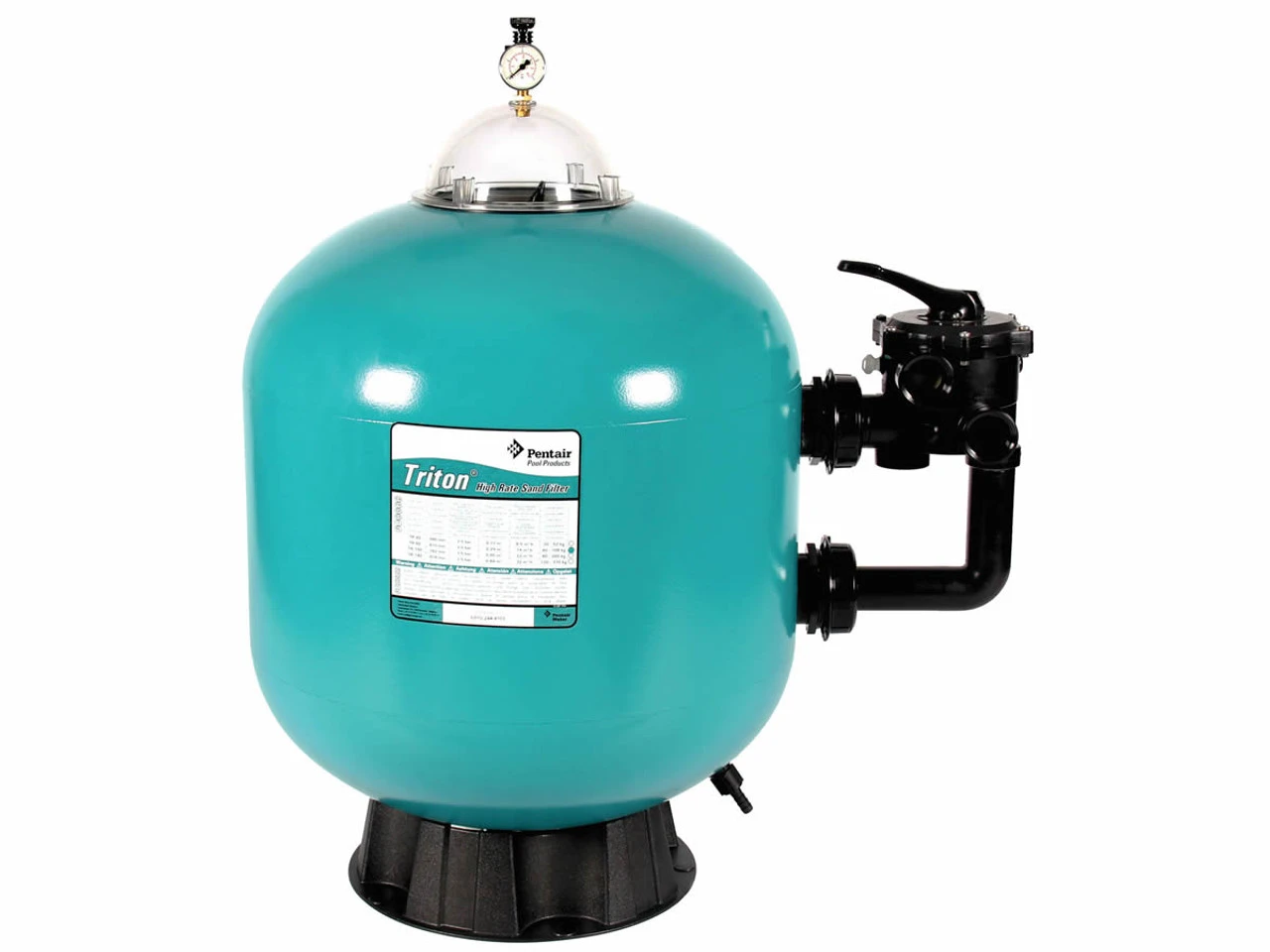

Pentair Triton Swimming Pool Sand Filter

Featuring a pressure gauge, side mounted multiport valve and a large top mounted dome through which you can view the water (which comes in very useful when backwashing), the Pentair Triton Swimming Pool Sand Filter Barrel is available in 4 different sizes with or without filter media (please make your selection from the drop-down at the top of the page prior to checkout).

The Pentair Triton Sand Filter is suitable for both inground and above ground swimming pools.

Pentair Triton Sand Filter Barrel Technical Specification
Reference	Filter Size	Flow Rate m³/h	Filter Area m²	Flange Connection	Filter Price
TR19	19″	8.5	0.17	1.5″	£585
TR24	24″	14	0.29	1.5″	£675
TR30	30″	22	0.45	2″	£995
TR36	36″	32	0.54	2″	£1350

Pentair Triton Swimming Pool Sand Filter Filling Weights
Reference	Sand Ø 0.35-0.5mm	Gravel Ø 3.5mm	Filter + Media
TR19	50 kg	25 kg	£635
TR24	100 kg	50 kg	£765
TR30	200 kg	75 kg	£1165
TR36	325 kg	125 kg	£1595

Pentair Triton Swimming Pool Sand Filter Dimensions
(mm)	TR19	TR24	TR30	TR36
A	825	955	1095	1200
B	400	400	610	610
C	480	610	762	914
D	242	242	292	292
E	110	110	150	150
F	70	70	70	70
G	463	530	590	657
H	524	592	671	738

Technical Specifications:

Maximum Operating Pressure:: 3.5 Bar
Max Operating Temperature:: 50°C
Tank Warranty:: 10 Years

Barrel Size	19" Filter Barrel, 24" Filter Barrel, 30" Filter Barrel, 36" Filter Barrel, 19" Filter Barrel with Media, 24" Filter Barrel with Media, 30" Filter Barrel with Media, 36" Filter Barrel with Media
