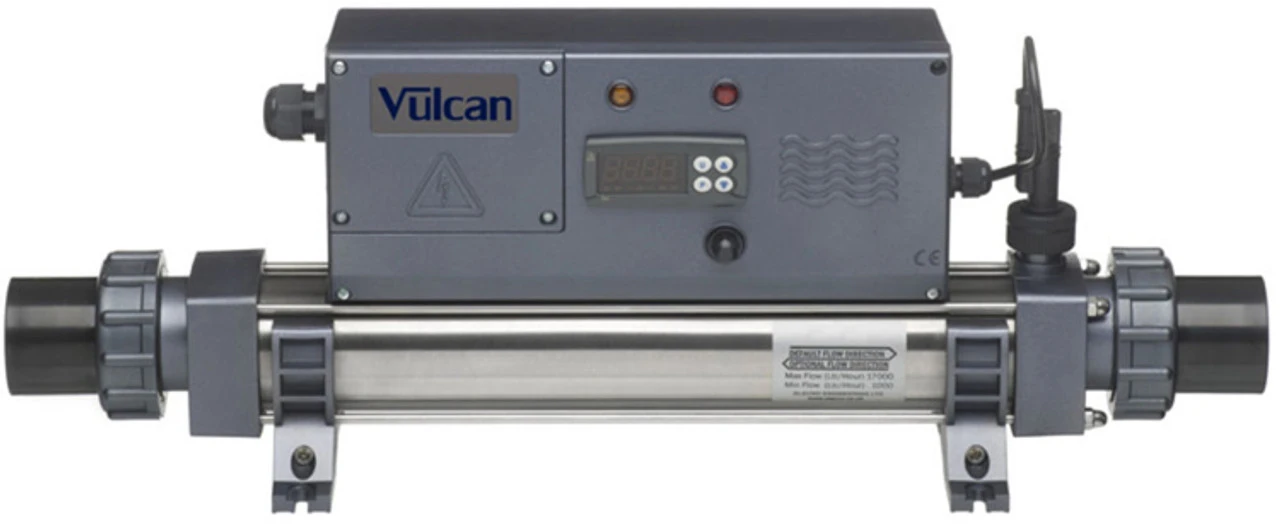

Elecro Vulcan Digital Electric Swimming Pool Heater

Name: Secure the Best Deals for Elecro Vulcan Electric Pool Heater Digital at Jacksonsleisuresupplies.com.
SKU: VULCAN DIGITAL
Price: 98.99 GBP
Availability: InStock

With the British made Elecro Vulcan Digital Electric Pool Heater, you’re guaranteed a high quality, dependable and durable product that will provide first class performance for an enduring lifespan.

As well as being straightforward and easy to install, the Elecro Vulcan Digital Electric Pool Heater also comes equipped with a thermal cut to ensure against over temperature and a reversible flow switch, both of which provide safety and equipment protection for worry free operations.

Featuring indicator lights, an LCD display and a simple keypad with which to input your desired swimming pool temperature, the Digital model of the Elecro Vulcan Electric Pool Heater is enhanced for easy and efficient temperature management and accuracy.

Now available with titanium heating elements and flow tube (the titanium model is suitable for use in salt water pools), the Elecro Vulcan Digital Electric Pool Heater also features swivel feet, making it versatile for either wall or floor mounting, and can be relied upon for a powerful, precise performance every time.

Elecro Vulcan Digital Electric Pool Heater Specifications:

Power Supply: 230v single phase
Flow Requirements: Minimum flow:- 1m³/h
Maximum flow:- 17m³/h
Heating Elements: Titanium
Flow Tubes: Titanium
Control Thermostat: 0>40°C (1°C differential)
Safety Thermal Cut Out: 55°C (manual Reset)
Flow Switch: Gold tipped reed switch with titanium fulcrum pin
Wiring: High Temperature, Silicone sheathed, multi-strand copper conductors
Seals: Special formula high temperature polymer
Water connections: 1.5 inch BSP female thread
Working pressure: 4 Barg maximum
Mounting: Floor or wall mounting
Standards Compliance: European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC
Harmonised: EN55014 – EN55104, EN5501, EN5502, CEI801-4, CEI801-2, CEI801-3, the European low voltage directive 72/23EEC, the harmonised standard EN60335-2-35
VUL803PB Elecro Vulcan 3kW Swimming Pool Heater Single Phase Analogue Pool Heater With Titanium Elements

Model	kW	Phase	Price
V-8T83-D	3	1	£701
V-8T86-D	6	1	£719
V-8T89-D	9	1	£755
V-8T8A-D	12	1	£767
V-8T8B-D	15	1	£840
V-8T36V-D	6	3	£816
V-8T39V-D	9	3	£828
V-8T3AV-D	12	3	£840
V-8T3B-D	15	3	£852

Note: 1/3 phase Vulcan heaters are capable of being wired both single or three phase

Elecro Vulcan Electric Pool Heater Digital Manuals:

Technical Details
Installation Manual

3kw heaters can be fitted with a 13 amp plug, you should contact an electrician for larger size heaters.

Select	V-8T83-D – 3kW – Single Phase, V-8T86-D – 6kW – Single Phase, V-8T89-D – 9kW – Single Phase, V-8T8A-D – 12kW – Single Phase, V-8T8B-D – 15kW – Single Phase, V-8T36V-D – 6kW – Single/Three Phase, V-8T39V-D – 9kW – Single/Three Phase, V-8T3AV-D – 12kW – Single/Three Phase, V-8T3B-D 15kW – Three Phase
